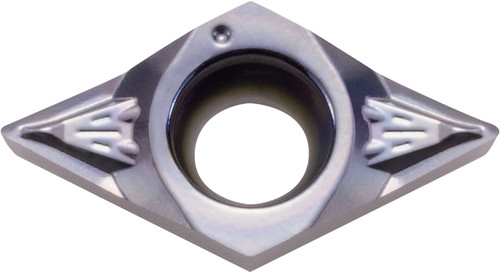

Kyocera DCGT 21502MFPSKS PR1535 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40015
$26.00
Kyocera DCGT21502MFPSKS PR1535 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Included Angle
55 degrees
Thickness
3/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21502
Old Material Number
8865716
ANSI Part Number
DCGT21502MFPSKSPR1535
ISO Part Number
DCGT070201MFP-SKS
Rake
Positive
Material Group / Grade
PR1535
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
SKS
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
