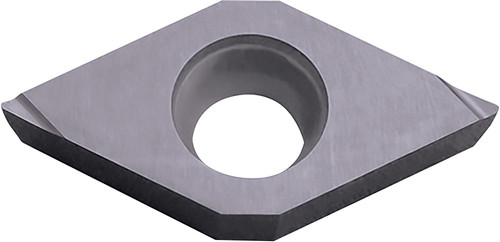

Kyocera Turning Insert DCGT21502MRF PR1225: TKE03343

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE03343
$26.00

Kyocera ISOI turning insert for stainless steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKE03343.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0040
Insert Style
DCGT
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21502
Secondary Workpiece Material
Steel
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Insert Grade
PR1225
Chip Breaker Type
F
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
DCGT070201MR-F
Workpiece Material
Stainless Steel
ANSI Designation
DCGT21502MRFPR1225
Pack quantity
10
Coating Process
PVD
Kyocera Turning Insert DCGT21502MRF PR1225: TKE03343
$26.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
