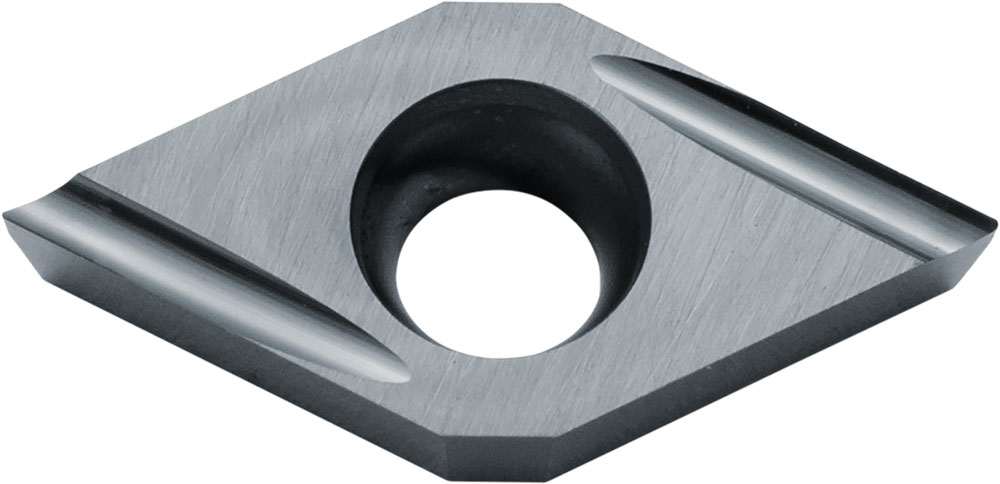

Kyocera Turning Insert DCGT21505ERU PV720: TLD03283

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD03283
$31.59

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD03283.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCGT
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
PV720
Chip Breaker Type
U
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
DCGT070202ER-U
Workpiece Material
Steel
ANSI Designation
DCGT21505ERUPV720
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Coating Process
PVD
