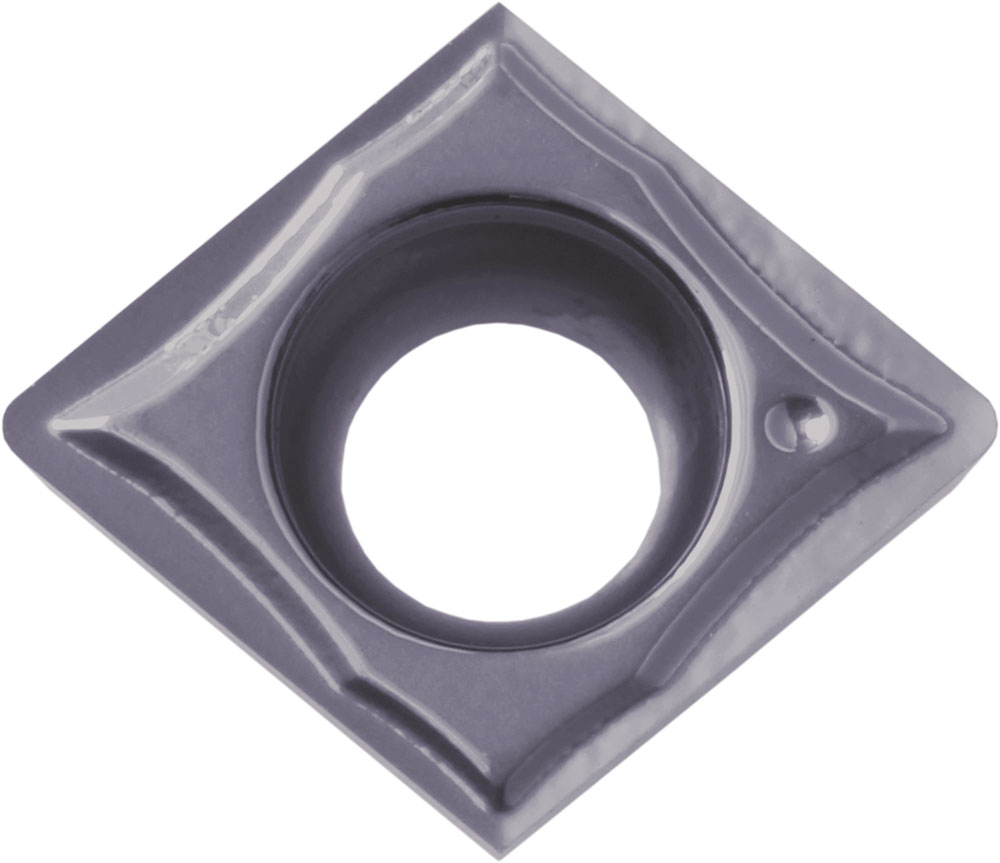

Kyocera DCGT 2151MFPGQ PR1705 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLN40080
$26.00
Kyocera DCGT 2151MFPGQ PR1705 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, and (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
3/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2151
Old Material Number
8865056
ANSI Part Number
DCGT2151MFPGQPR1705
ISO Part Number
DCGT070204MFP-GQ
Rake
Positive
Material Group / Grade
PR1705
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
GQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Kyocera DCGT 2151MFPGQ PR1705 Grade PVD Carbide, Indexable Turning Insert
$26.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
