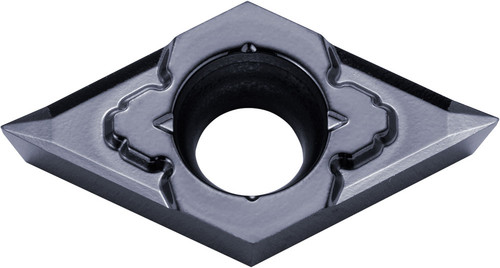

Kyocera DCGT 32502MPCK PR1705 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLN40087
$33.76
Kyocera DCGT 32502MPCK PR1705 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Free-Cutting Steel and (P) Carbon/Alloy Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32502
Old Material Number
8865063
ANSI Part Number
DCGT32502MPCKPR1705
ISO Part Number
DCGT11T301MP-CK
Rake
Positive
Material Group / Grade
PR1705
Corner Radius (Metric)
0.10
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
CK
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
