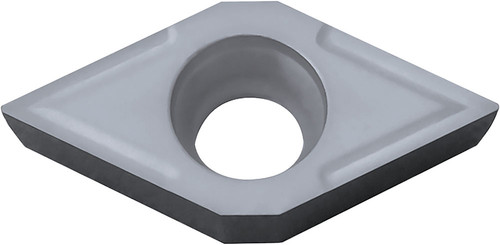

Kyocera DCGT 32505 TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS03211
$29.11
Kyocera DCGT 32505 TN610 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32505
Old Material Number
8847927
ANSI Part Number
DCGT32505TN610
ISO Part Number
DCGT11T302
Rake
Positive
Material Group / Grade
TN610
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.97
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
