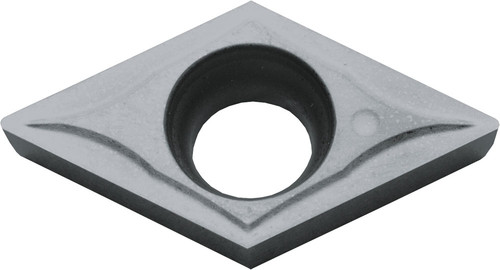

Kyocera DCGT 32505MFPGQ PR120S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLW00160
$33.76
Kyocera DCGT 32505MFPGQ PR120S Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32505
ANSI Part Number
DCGT32505MFPGQPR120S
ISO Part Number
DCGT11T302MFP-GQ
Rake
Positive
Material Group / Grade
PR120S
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
GQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR115S_PR120S_PVD_Coated_Carbide.pdf
