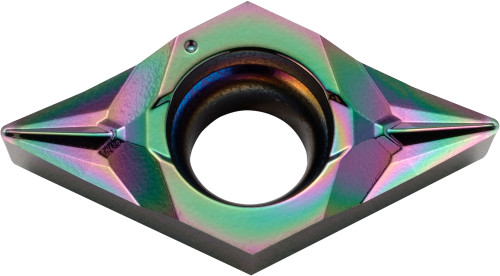

Kyocera DCGT 32505MFPSK PDL010 Grade DLC Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLK03461
$37.11
Kyocera DCGT 32505MFPSK PDL010 Grade DLC Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32505
Old Material Number
8860327
ANSI Part Number
DCGT32505MFPSKPDL010
ISO Part Number
DCGT11T302MFP-SK
Rake
Positive
Material Group / Grade
PDL010
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
SK
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
