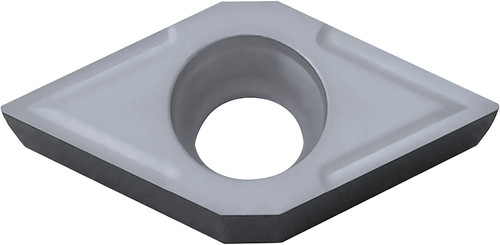

Kyocera DCGT 3251 TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR03212
$30.56
Kyocera DCGT 3251 TN620 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8843105
ANSI Part Number
DCGT3251TN620
ISO Part Number
DCGT11T304
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.97
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
