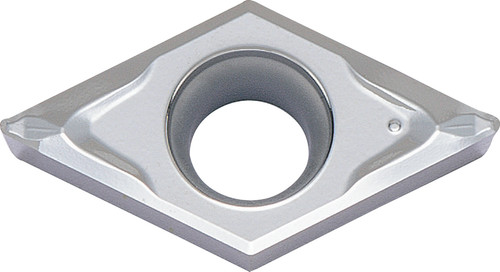

Kyocera DCGT 3251AP KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE04708
$32.84
Kyocera DCGT 3251AP KW10 Grade Uncoated Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCGT
Application
Back Boring, Copying, External Turning, Sub-Spindle
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8862027
ANSI Part Number
DCGT3251APKW10
ISO Part Number
DCGT11T304AP
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
AP
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/AP_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Kyocera DCGT 3251AP KW10 Grade Uncoated Carbide, Indexable Turning Insert
$32.84
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
