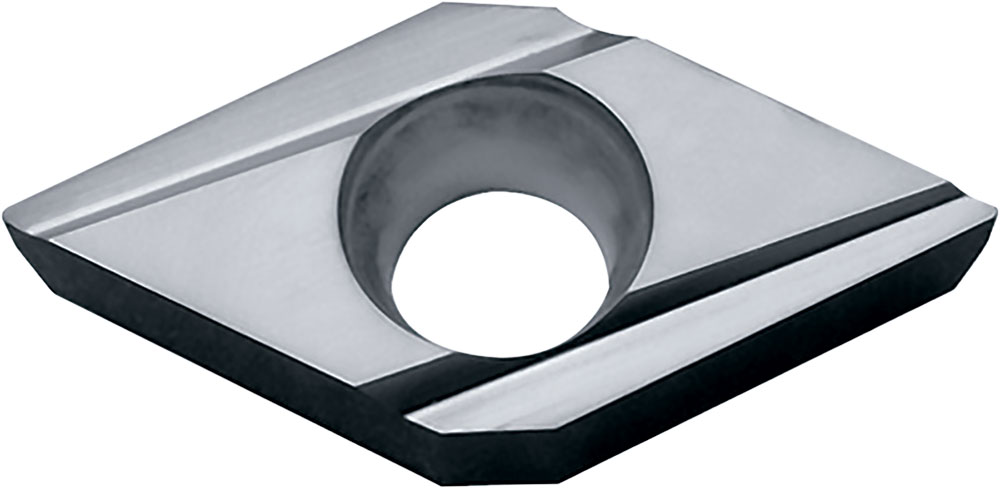

Kyocera Turning Insert DCGT3251ELJ TN610: TSS03376

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS03376
$29.11

Kyocera Turning Insert DCGT3251ELJ TN610, manufacturer part number TSS03376.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847944; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 3251; Hand Direction: Left; Insert Style: DCGT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCGT3251ELJTN610; Chip Breaker Type: J; ISO Designation: DCGT11T304EL-J; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: TN610; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCGT3251ELJTN610
Insert Style
DCGT
Machining Operations
Back Boring, Copying, External Turning, Sub-Spindle
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Old Material Number
8847944
Insert Grade
TN610
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
J
ISO Designation
DCGT11T304EL-J
Pack quantity
10
