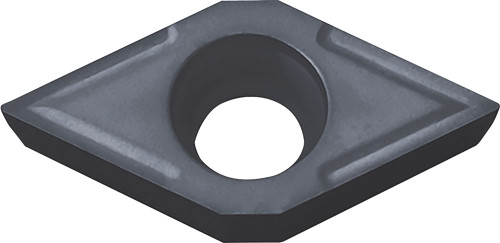

Kyocera Turning Insert DCGT3251MF PR1225: TKE03248

Kyocera Turning Insert DCGT3251MF PR1225, manufacturer part number TKE03248.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831923; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 3251; Hand Direction: Neutral; Insert Style: DCGT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCGT3251MFPR1225; Chip Breaker Type: F; ISO Designation: DCGT11T304MF; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning, Sub-Spindle; Insert Grade: PR1225; Workpiece Material: Stainless Steel, Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.
