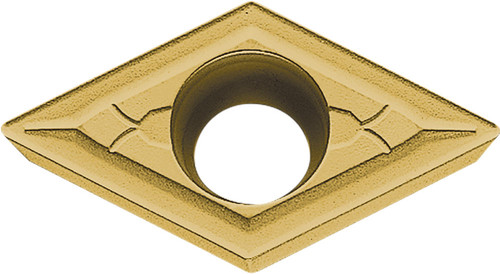

Kyocera Turning Insert DCMT21505GK CA515: TAB01805

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB01805
$24.52

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB01805.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
6.35
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCMT
Insert Thickness (Fractional)
3/32
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
21505
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Copying, External Turning
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Insert Grade
CA515
Chip Breaker Type
GK
Cutting Range
Finishing-Medium
Usage Classification
Continuous
ISO Designation
DCMT070202GK
Workpiece Material
Steel
ANSI Designation
DCMT21505GKCA515
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Coating Process
CVD
