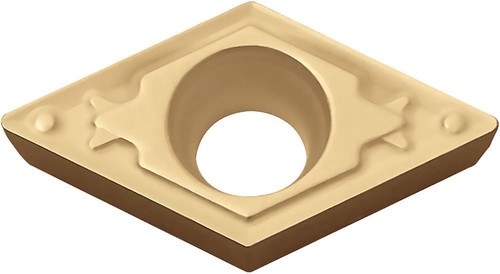

Kyocera DCMT 21505HQ CCX Grade CVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40048
$23.82
Kyocera DCMT 21505HQ CCX Grade CVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel and (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
55 degrees
Thickness
3/32 Inch
Style
DCMT
Application
Back Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8864232
ANSI Part Number
DCMT21505HQCCX
ISO Part Number
DCMT070202HQ
Rake
Positive
Material Group / Grade
CCX
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CCX_CVD_Cermet.pdf
