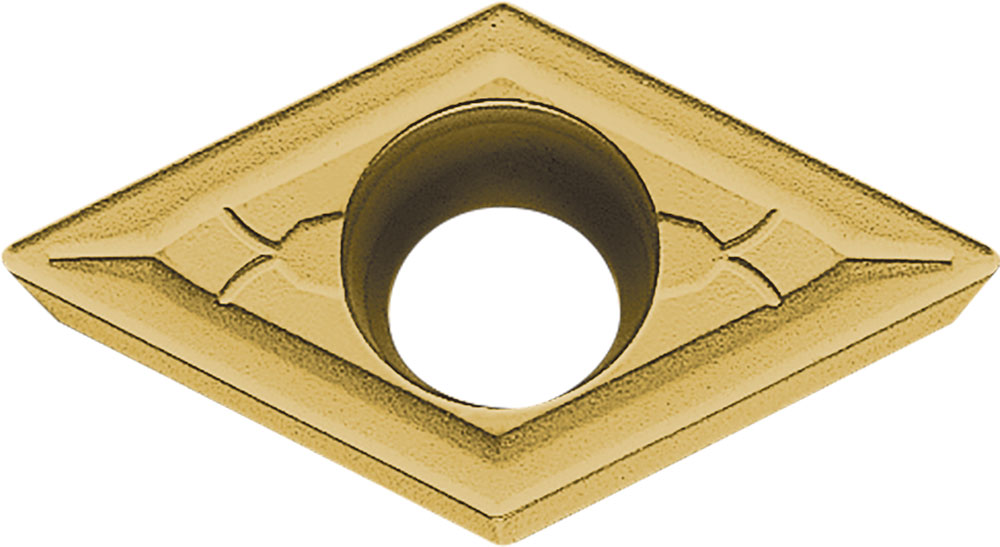

Kyocera Turning Insert DCMT2151GK TN620: TSR64040

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR64040
$20.61

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSR64040.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCMT2151GKTN620
Insert Style
DCMT
Insert Thickness (Metric)
2.38
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2151
Machining Operations
Back Boring, Copying, External Turning
Insert Grade
TN620
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
DCMT070204GK
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Chip Breaker Type
GK
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
