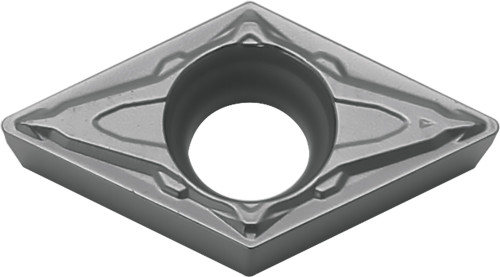

Kyocera DCMT 2151PP TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR03487
$20.61
Kyocera DCMT 2151PP TN620 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
3/32 Inch
Style
DCMT
Application
Back Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
2151
Old Material Number
8842783
ANSI Part Number
DCMT2151PPTN620
ISO Part Number
DCMT070204PP
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
2.38
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
