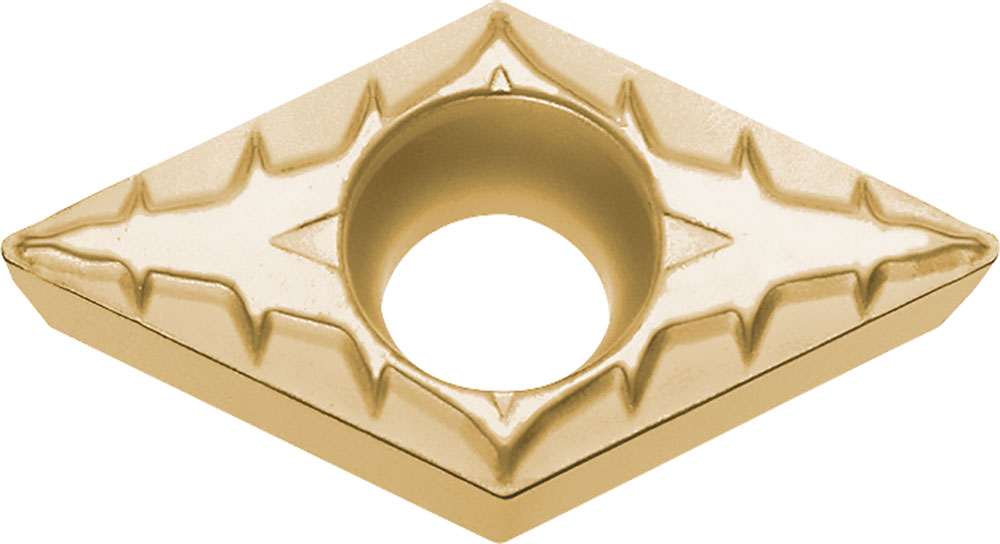

Kyocera Turning Insert DCMT2151XP CA125P: TMK00375

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00375
$23.82

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00375.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCMT2151XPCA125P
Insert Style
DCMT
Insert Thickness (Metric)
2.38
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
2151
Machining Operations
Back Boring, Copying, External Turning
Insert Grade
CA125P
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
DCMT070204XP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
XP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
