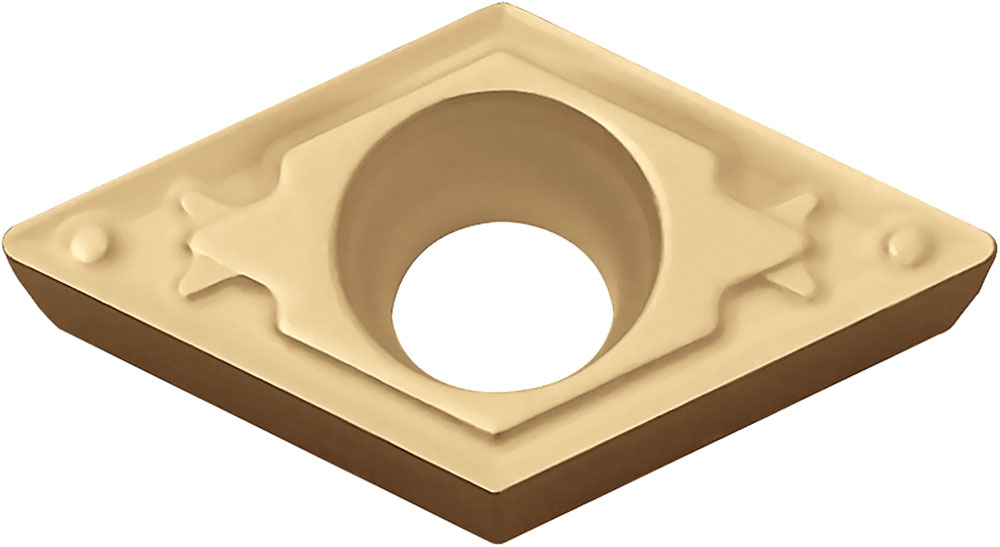

Kyocera Turning Insert DCMT32505HQ CA525: TAC01860

Kyocera Turning Insert DCMT32505HQ CA525, manufacturer part number TAC01860.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840033; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 32505; Hand Direction: Neutral; Insert Style: DCMT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMT32505HQCA525; Chip Breaker Type: HQ; ISO Designation: DCMT11T302HQ; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: CA525; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
