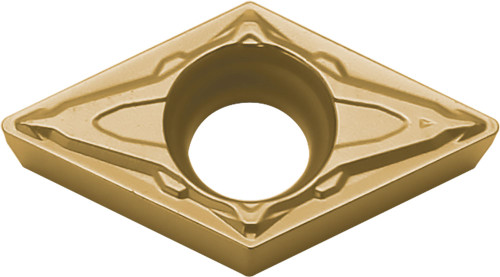

Kyocera Turning Insert DCMT32505PP CA510: TAA01846

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA01846
$27.85

Kyocera Turning Insert DCMT32505PP CA510, manufacturer part number TAA01846.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840015; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 32505; Hand Direction: Neutral; Insert Style: DCMT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMT32505PPCA510; Chip Breaker Type: PP; ISO Designation: DCMT11T302PP; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: CA510; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
5/32
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCMT
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Old Material Number
8840015
Machining Operations
Back Boring, Copying, External Turning
Insert Grade
CA510
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Steel
ISO Designation
DCMT11T302PP
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
DCMT32505PPCA510
Chip Breaker Type
PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Coating Process
CVD
