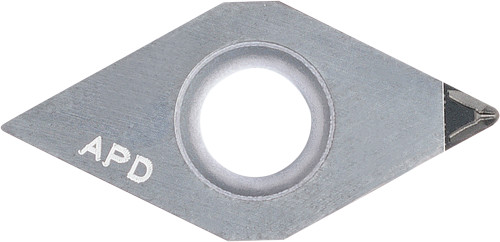

Kyocera DCMT 3251APD KPD001 Grade PCD, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR40005
$242.58
Kyocera DCMT3251APD KPD001 Grade PCD, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCMT
Application
Back Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
3251
Old Material Number
8865304
ANSI Part Number
DCMT3251APDKPD001
ISO Part Number
DCMT11T304APD
Rake
Positive
Material Group / Grade
KPD001
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Thickness (Metric)
3.97
Chipbreaker
APD
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Aluminum_Alloy_Machining_Solutions_for_Small_Parts.pdf
