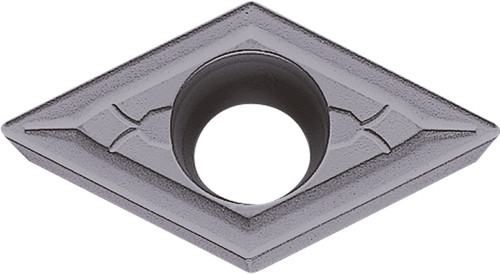

Kyocera Turning Insert DCMT3251GK PR930: TKT64041

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT64041
$32.35

Kyocera Turning Insert DCMT3251GK PR930, manufacturer part number TKT64041.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8817816; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 3251; Hand Direction: Neutral; Insert Style: DCMT; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMT3251GKPR930; Chip Breaker Type: GK; ISO Designation: DCMT11T304GK; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCMT3251GKPR930
Insert Style
DCMT
Machining Operations
Back Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Old Material Number
8817816
Insert Grade
PR930
Workpiece Material
Steel, Stainless Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
GK
ISO Designation
DCMT11T304GK
Pack quantity
10
