Kyocera Turning Insert DCMT3251HQ CCX: TMJ40052

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40052
$27.04

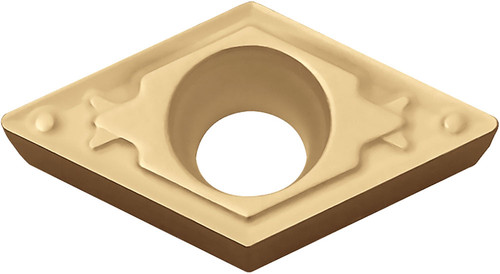

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMJ40052.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCMT3251HQCCX
Insert Style
DCMT
Machining Operations
Back Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Secondary Workpiece Material
Cast Iron
Insert Grade
CCX
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
HQ
ISO Designation
DCMT11T304HQ
Pack quantity
10
