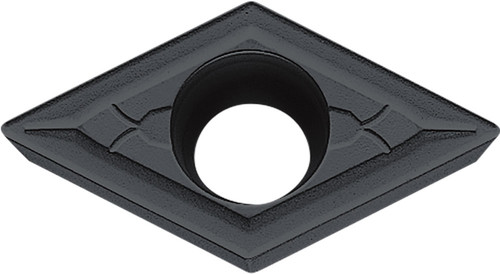

Kyocera Turning Insert DCMT3252GK CA4515: TJH01857

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH01857
$27.85

Kyocera ISOI turning insert for cast iron, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, CVD coated. Order reference TJH01857.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Machining Operations
Back Boring, Copying, External Turning
Insert Thickness (Fractional)
5/32
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DCMT3252GKCA4515
Insert Style
DCMT
Insert Grade
CA4515
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3252
Workpiece Material
Cast Iron
Coating Process
CVD
Rake
Positive
Insert Thickness (Metric)
3.97
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Heavy Interruption
IC Size (Metric)
9.525
Chip Breaker Type
GK
ISO Designation
DCMT11T308GK
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA45-Series-8pg-Brochure.pdf
