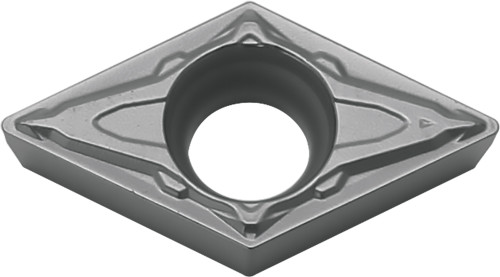

Kyocera Turning Insert DCMT3252PP TN610: TSS03561

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS03561
$20.70

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSS03561.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DCMT3252PPTN610
Insert Style
DCMT
Machining Operations
Back Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3252
Insert Grade
TN610
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.80
Number of Cutting Edges
2
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
PP
ISO Designation
DCMT11T308PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
