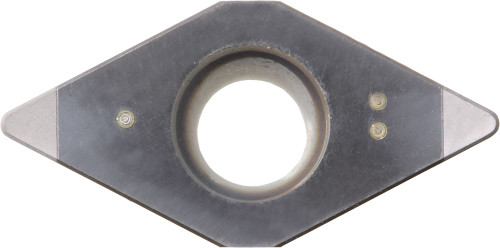

Kyocera Turning Insert DCMW32505S00435MET KBN05M: TBN02125

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN02125
$99.73

Kyocera ISOI turning insert for hardened steel, 3/8 in (9.525 mm) IC, 55 degree diamond shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. CBN, MEGACOAT (PVD) coating. Manufacturer part number TBN02125.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
5/32
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCMW
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Machining Operations
Back Boring, Copying, External Turning
Insert Grade
KBN05M
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
DCMW32505S00435METKBN05M
ISO Designation
DCMW11T302S01035MET
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KBN05M_W.pdf
Coating Process
PVD
Kyocera Turning Insert DCMW32505S00435MET KBN05M: TBN02125
$99.73
