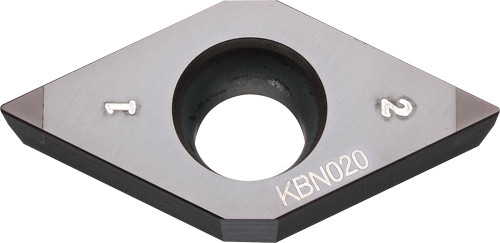

Kyocera Turning Insert DCMW32505S00525MES KBN020: TFC00068

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00068
$104.73

Kyocera Turning Insert DCMW32505S00525MES KBN020, manufacturer part number TFC00068.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 32505; Hand Direction: Neutral; Insert Style: DCMW; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMW32505S00525MESKBN020; ISO Designation: DCMW11T302S01225MES; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: KBN020; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT TOUGH. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT TOUGH
Insert Thickness (Fractional)
5/32
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DCMW
Insert Thickness (Metric)
3.97
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
32505
Machining Operations
Back Boring, Copying, External Turning
Insert Grade
KBN020
Rake
Positive
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
DCMW32505S00525MESKBN020
ISO Designation
DCMW11T302S01225MES
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
Coating Process
PVD
Kyocera Turning Insert DCMW32505S00525MES KBN020: TFC00068
$104.73
