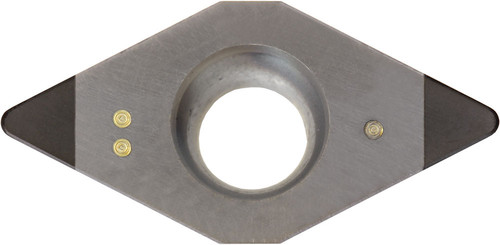

Kyocera Turning Insert DCMW3251T00315ME KBN60M: TBB02116

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBB02116
$99.73

Kyocera Turning Insert DCMW3251T00315ME KBN60M, manufacturer part number TBB02116.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8828861; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 3251; Hand Direction: Neutral; Insert Style: DCMW; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMW3251T00315MEKBN60M; ISO Designation: DCMW11T304T00815ME; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: KBN60M; Workpiece Material: Cast Iron; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DCMW3251T00315MEKBN60M
Insert Style
DCMW
Machining Operations
Back Boring, Copying, External Turning
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3251
Old Material Number
8828861
Insert Grade
KBN60M
Workpiece Material
Cast Iron
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Coating Process
PVD
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
DCMW11T304T00815ME
IC Size (Fractional)
3/8
