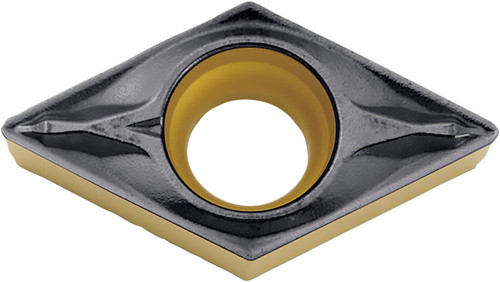

Kyocera Turning Insert DCMX2151WP CA115P: TML00349

Kyocera Turning Insert DCMX2151WP CA115P, manufacturer part number TML00349.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 2151; Hand Direction: Neutral; Insert Style: DCMX; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMX2151WPCA115P; Chip Breaker Type: WP; ISO Designation: DCMX070204WP; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: CA115P; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
