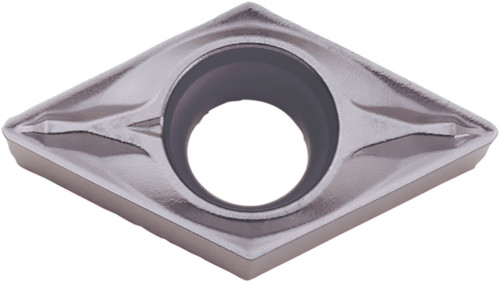

Kyocera DCMX 32505WP PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00228
$29.50
Kyocera DCMX 32505WP PR1725 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
55 degrees
Thickness
5/32 Inch
Style
DCMX
Application
Back Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
32505
Old Material Number
8863478
ANSI Part Number
DCMX32505WPPR1725
ISO Part Number
DCMX11T302WP
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.20
Number of Cutting Edges
2
Thickness (Metric)
3.97
Chipbreaker
WP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/WP_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
