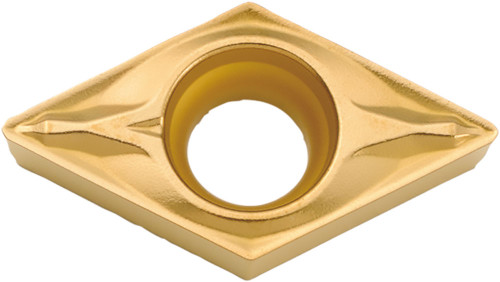

Kyocera Turning Insert DCMX3252WP CA510: TAA01732
SKU: KYP-TAA01732
Kyocera Turning Insert DCMX3252WP PV710, manufacturer part number TLF03592.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8859364; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 3252; Hand Direction: Neutral; Insert Style: DCMX; Insert Shape: 55 Degree Diamond; ANSI Designation: DCMX3252WPPV710; Chip Breaker Type: WP; ISO Designation: DCMX11T308WP; Included Angle: 55 degrees; Machining Operations: Back Boring, Copying, External Turning; Insert Grade: PV710; Workpiece Material: Steel; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
