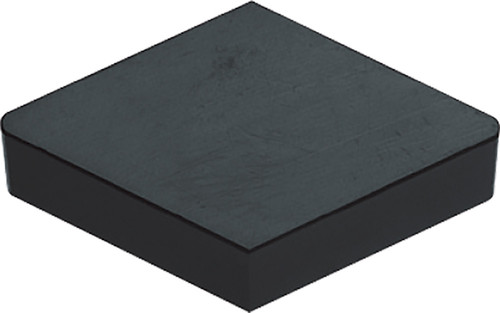

Kyocera DNG 451T00825 A65 Grade Uncoated Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCR00990
$46.52
Kyocera DNG 451T00825 A65 Grade Uncoated Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron, (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron|(H) Hardened Materials
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
5/16 Inch
Style
DNG
Application
Back Turning, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Clamp
Size
451
Old Material Number
8800997
ANSI Part Number
DNG451T00825A65
ISO Part Number
DNGN150704T02025
Rake
Negative
Material Group / Grade
A65
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Thickness (Metric)
7.94
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
