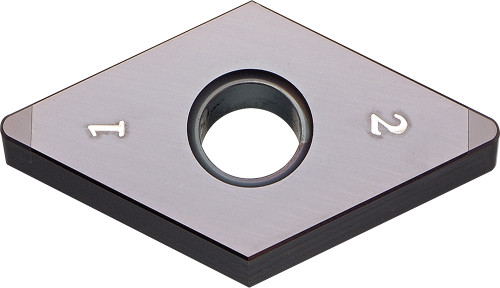

Kyocera Turning Insert DNGA431S00245MEP KBN05M: TBN02280

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN02280
$99.73

Kyocera Turning Insert DNGA431S00245MEP KBN05M, manufacturer part number TBN02280.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8835327; Rake: Negative; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 431; Hand Direction: Neutral; Insert Style: DNGA; Insert Shape: 55 Degree Diamond; ANSI Designation: DNGA431S00245MEPKBN05M; ISO Designation: DNGA150404S00545MEP; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: KBN05M; Workpiece Material: Hardened Steel; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNGA431S00245MEPKBN05M
Insert Style
DNGA
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Old Material Number
8835327
Machining Operations
Boring, Copying, External Turning
Insert Grade
KBN05M
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
DNGA150404S00545MEP
