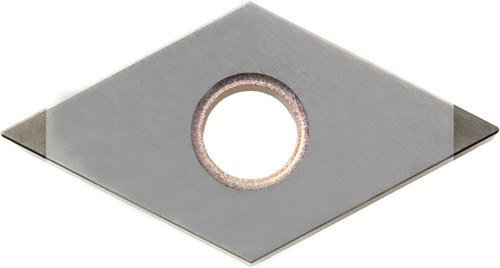

Kyocera DNGA 431S00525ME KBN25M Grade CBN, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBZ02212
$99.73
Kyocera DNGA 431S00525ME KBN25M Grade CBN, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (H) Hardened Materials

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
CBN
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
3/16 Inch
Style
DNGA
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8824483
ANSI Part Number
DNGA431S00525MEKBN25M
ISO Part Number
DNGA150404S01225ME
Rake
Negative
Material Group / Grade
KBN25M
Corner Radius (Metric)
0.40
Number of Cutting Edges
2
Thickness (Metric)
4.76
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
