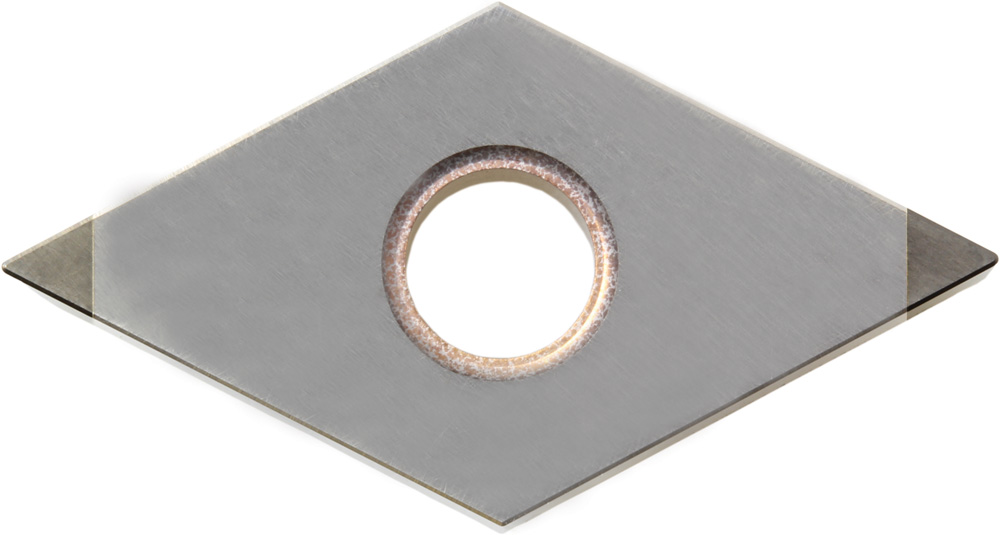

Kyocera Turning Insert DNGA432S00525ME KBN60M: TBB02213

Kyocera Turning Insert DNGA432S00525ME KBN60M, manufacturer part number TBB02213.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8828867; Rake: Negative; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 432; Hand Direction: Neutral; Insert Style: DNGA; Insert Shape: 55 Degree Diamond; ANSI Designation: DNGA432S00525MEKBN60M; ISO Designation: DNGA150408S01225ME; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: KBN60M; Workpiece Material: Cast Iron; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.
