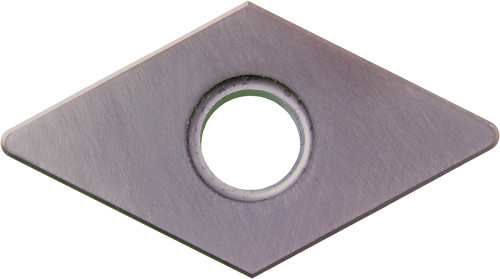

Kyocera Turning Insert DNGA433T00825 PT600M: TCV02012

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCV02012
$41.22

Kyocera ISOI turning insert for hardened steel, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Ceramic - aluminum oxide / titanium carbide, MEGACOAT (PVD) coating. Manufacturer part number TCV02012.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Ceramic - Aluminum Oxide / Titanium Carbide
Coating/Finish
MEGACOAT
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
55
ANSI Designation
DNGA433T00825PT600M
Insert Style
DNGA
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
433
Secondary Workpiece Material
Cast Iron
Machining Operations
Boring, Copying, External Turning
Insert Grade
PT600M
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
ISO Designation
DNGA150412T02025
Pack quantity
10
