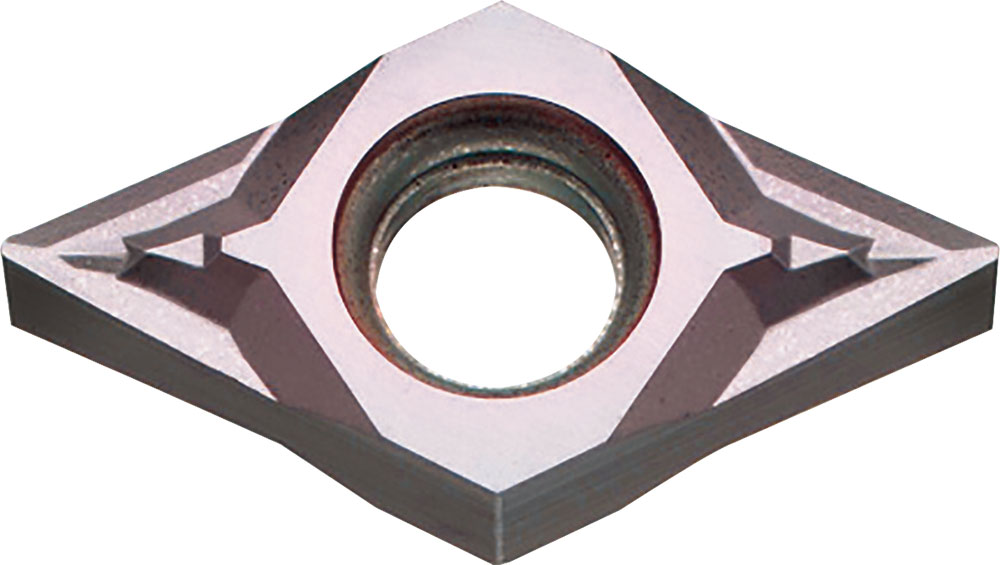

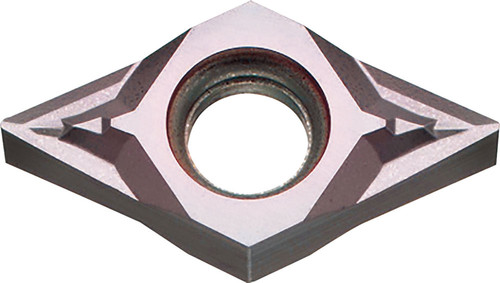

Kyocera DNGU 22205MFPSK PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE03691
$53.81
Kyocera DNGU 22205MFPSK PR1225 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
DSSS
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
0.01 Inch
Included Angle
55 degrees
Style
DNGU
Application
Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
22205
Old Material Number
8831937
ANSI Part Number
DNGU22205MFPSKPR1225
ISO Part Number
DNGU080302MFP-SK
Rake
Negative
Material Group / Grade
PR1225
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Thickness (Fractional)
1/8
Thickness (Metric)
3.18
Chipbreaker
SK
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
7
Inscribed Circle
0.28 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Kyocera DNGU 22205MFPSK PR1225 Grade PVD Carbide, Indexable Turning Insert
$53.81
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
