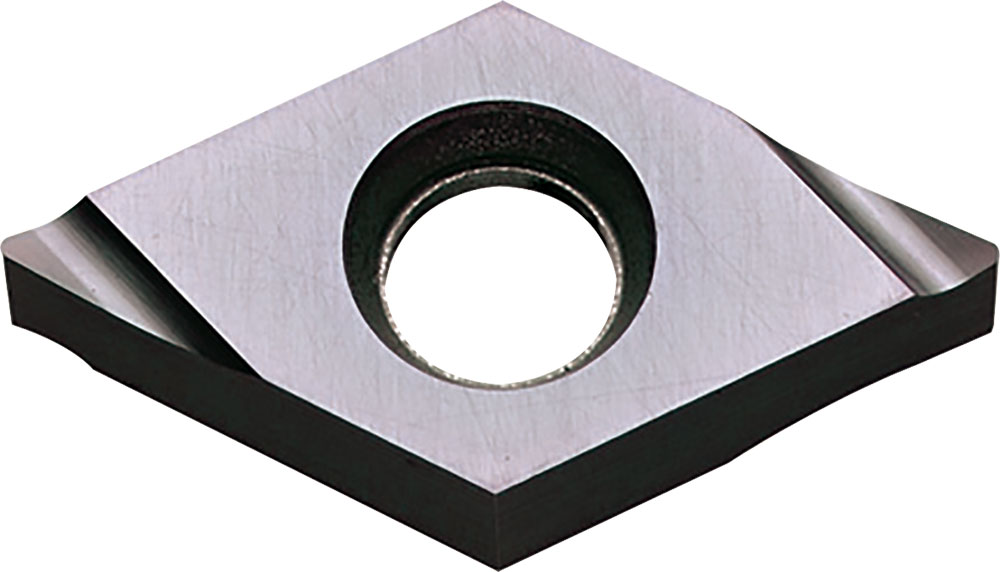

Kyocera DNGU 22205MFRU PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00232
$53.81
Kyocera DNGU 22205MFRU PR1725 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
DSSS
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
0.01 Inch
Included Angle
55 degrees
Style
DNGU
Application
Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
22205
Old Material Number
8863482
ANSI Part Number
DNGU22205MFRUPR1725
ISO Part Number
DNGU080302MFR-U
Rake
Negative
Material Group / Grade
PR1725
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Thickness (Fractional)
1/8
Thickness (Metric)
3.18
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
7
Inscribed Circle
0.28 Inch
Pack quantity
10
