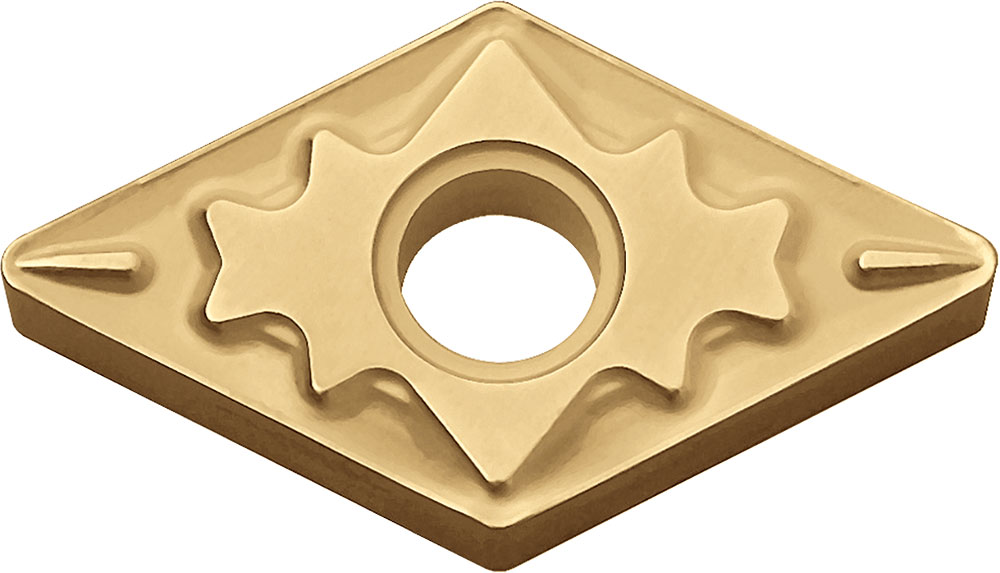

Kyocera Turning Insert DNMG3305HQ CA515: TAB01920

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB01920
$19.37

Kyocera Turning Insert DNMG3305HQ CA515, manufacturer part number TAB01920.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8840452; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 3305; Hand Direction: Neutral; Insert Style: DNMG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMG3305HQCA515; Chip Breaker Type: HQ; ISO Designation: DNMG110402HQ; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: CA515; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Included Angle
55
Corner Radius (Decimal)
0.0080
Insert Style
DNMG
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
3305
Old Material Number
8840452
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA515
Rake
Negative
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG110402HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
3/8
ANSI Designation
DNMG3305HQCA515
Chip Breaker Type
HQ
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
Coating Process
CVD
