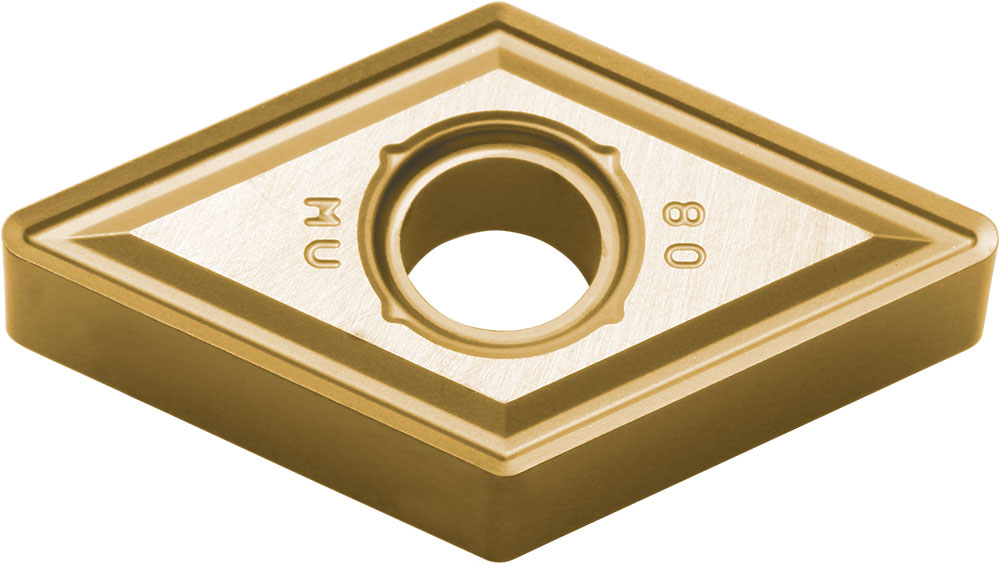

Kyocera DNMG 431MU CA6515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJU02261
$29.35
Kyocera DNMG 431MU CA6515 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (M) Stainless Steel and (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
1/64 Inch
Included Angle
55 degrees
Thickness
3/16 Inch
Style
DNMG
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8822276
ANSI Part Number
DNMG431MUCA6515
ISO Part Number
DNMG150404MU
Rake
Negative
Material Group / Grade
CA6515
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
MU
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
