Kyocera Turning Insert DNMG431PS CA510: TAA02155

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAA02155
$29.35

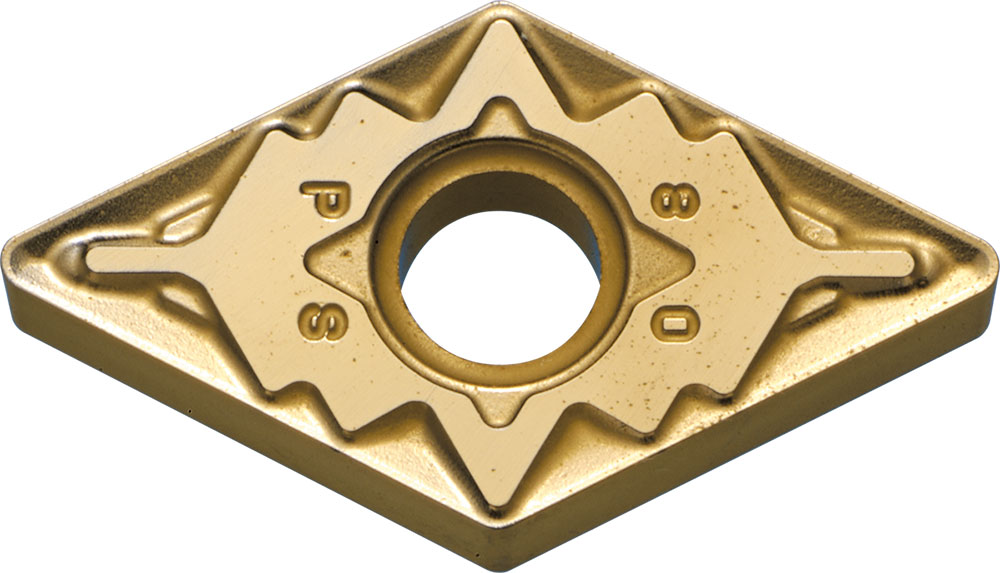

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAA02155.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNMG431PSCA510
Insert Style
DNMG
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA510
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG150404PS
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PS
Pack quantity
10
