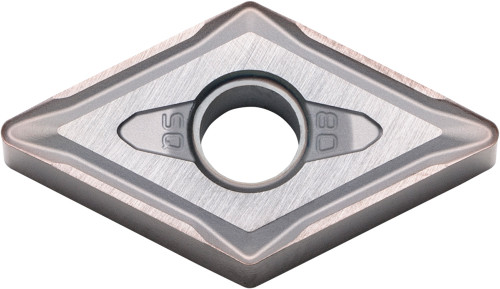

Kyocera Turning Insert DNMG431SQ PR005S: TLH10013

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLH10013
$30.80

Kyocera Turning Insert DNMG431SQ PR005S, manufacturer part number TLH10013.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8858298; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 431; Hand Direction: Neutral; Insert Style: DNMG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMG431SQPR005S; Chip Breaker Type: SQ; ISO Designation: DNMG150404SQ; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: PR005S; Workpiece Material: High-Temp Alloy; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT HARD. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
MEGACOAT HARD
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNMG431SQPR005S
Insert Style
DNMG
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
431
Old Material Number
8858298
Machining Operations
Boring, Copying, External Turning
Insert Grade
PR005S
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
High-Temp Alloy
ISO Designation
DNMG150404SQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
SQ
Pack quantity
10
