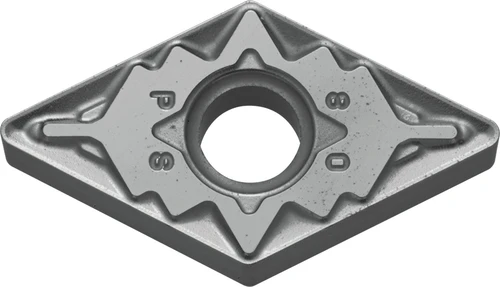

Kyocera Turning Insert DNMG432PS TN620: TSR03837

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR03837
$29.85

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSR03837.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DNMG432PSTN620
Insert Style
DNMG
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, Copying, External Turning
Insert Grade
TN620
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG150408PS
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Chip Breaker Type
PS
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
