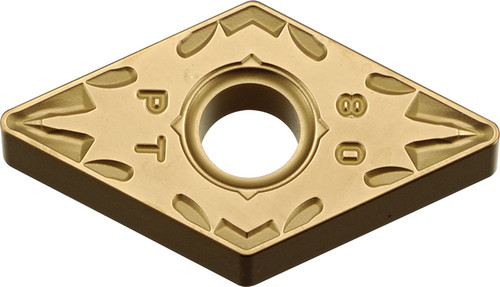

Kyocera Turning Insert DNMG432PT CA530: TAD02161

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD02161
$29.35

Kyocera Turning Insert DNMG432PT CA530, manufacturer part number TAD02161.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8839951; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 432; Hand Direction: Neutral; Insert Style: DNMG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMG432PTCA530; Chip Breaker Type: PT; ISO Designation: DNMG150408PT; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: CA530; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DNMG432PTCA530
Insert Style
DNMG
Insert Thickness (Metric)
4.76
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8839951
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA530
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG150408PT
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PT
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
