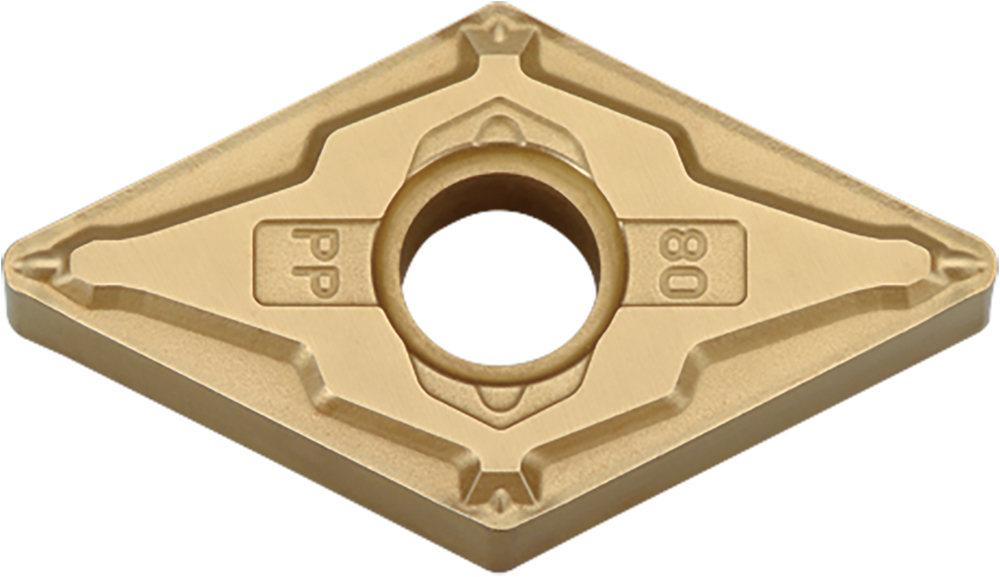

Kyocera DNMG 433PP CA025P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00018
$29.35
Kyocera DNMG 433PP CA025P Grade CVD Carbide, 55 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
55 degrees
Thickness
3/16 Inch
Style
DNMG
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8860115
ANSI Part Number
DNMG433PPCA025P
ISO Part Number
DNMG150412PP
Rake
Negative
Material Group / Grade
CA025P
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
4.76
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
