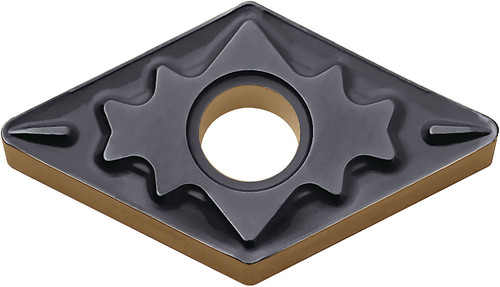

Kyocera Turning Insert DNMG441HQ CA115P: TML00139

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00139
$32.91

Kyocera Turning Insert DNMG441HQ CA115P, manufacturer part number TML00139.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 1/4 in (6.35 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 441; Hand Direction: Neutral; Insert Style: DNMG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMG441HQCA115P; Chip Breaker Type: HQ; ISO Designation: DNMG150604HQ; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: CA115P; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNMG441HQCA115P
Insert Style
DNMG
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
441
Machining Operations
Boring, Copying, External Turning
Insert Grade
CA115P
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG150604HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
