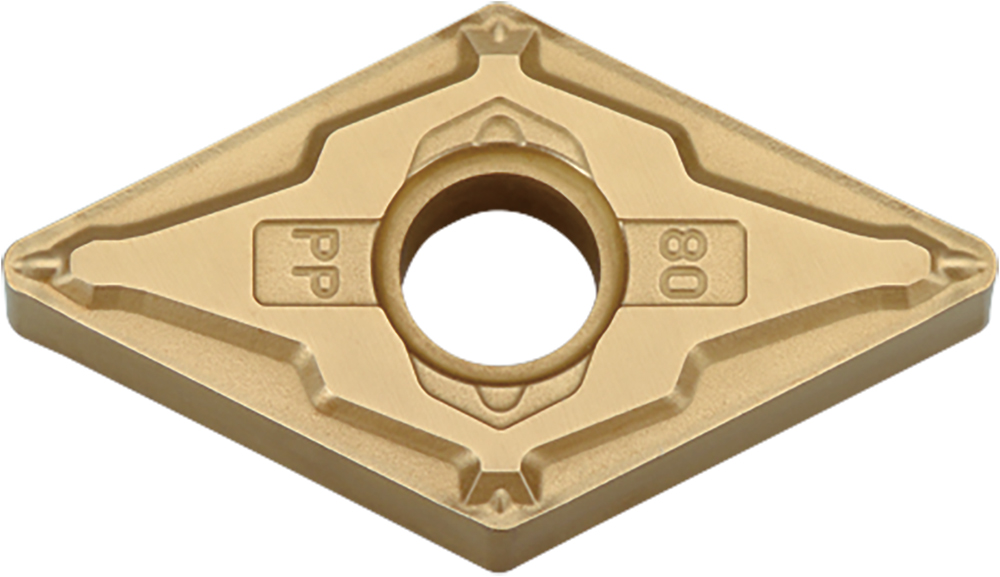

Kyocera DNMG 442PP PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD03963
$35.83
Kyocera DNMG 442PP PV720 Grade PVD Cermet, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN (MEGACOAT NANO)
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DNMG442PPPV720
Insert Style
DNMG
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
442
Old Material Number
8843150
Machining Operations
Boring, Copying, External Turning
Insert Grade
PV720
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG150608PP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
Kyocera DNMG 442PP PV720 Grade PVD Cermet, Indexable Turning Insert
$35.83
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
