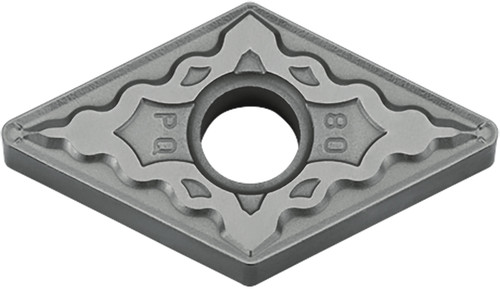

Kyocera Turning Insert DNMG442PQ TN610: TSS03973

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS03973
$28.42

Kyocera Turning Insert DNMG442PQ TN610, manufacturer part number TSS03973.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 1/4 in (6.35 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8847049; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 442; Hand Direction: Neutral; Insert Style: DNMG; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMG442PQTN610; Chip Breaker Type: PQ; ISO Designation: DNMG150608PQ; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: TN610; Workpiece Material: Steel.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
1/32
Included Angle
55
ANSI Designation
DNMG442PQTN610
Insert Style
DNMG
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
442
Old Material Number
8847049
Machining Operations
Boring, Copying, External Turning
Insert Grade
TN610
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMG150608PQ
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Chip Breaker Type
PQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
