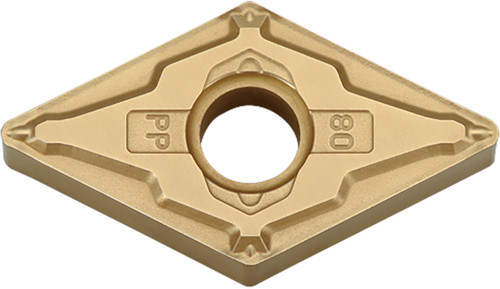

Kyocera DNMG 443PP PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00243
$35.83
Kyocera DNMG443PP PV730 Grade PVD Cermet, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
55 degrees
Thickness
1/4 Inch
Style
DNMG
Application
Boring, Copying, External Turning
Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Size
443
Old Material Number
8866008
ANSI Part Number
DNMG443PPPV730
ISO Part Number
DNMG150612PP
Rake
Negative
Material Group / Grade
PV730
Corner Radius (Metric)
1.20
Number of Cutting Edges
4
Thickness (Metric)
6.35
Chipbreaker
PP
Cutting Range
Finishing
Usage Classification
Heavy Interruption
Insert Included Angle
55 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
