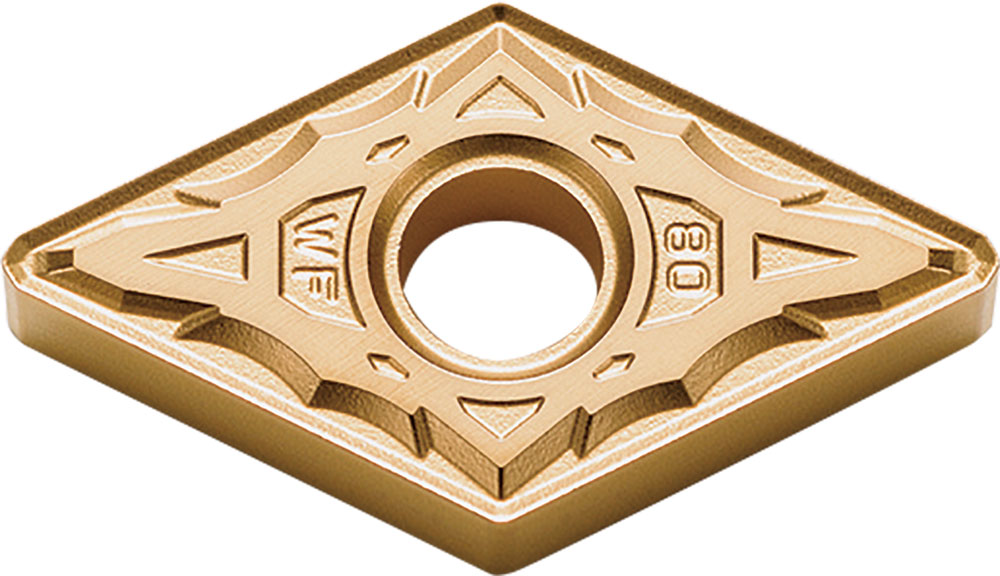

Kyocera Turning Insert DNMX433WF CA525: TAC03992
SKU: KYP-TAC03992
Kyocera Turning Insert DNMX433WF PV720, manufacturer part number TLD03992.
Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8849228; Rake: Negative; Number of Cutting Edges: 4; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 433; Hand Direction: Neutral; Insert Style: DNMX; Insert Shape: 55 Degree Diamond; ANSI Designation: DNMX433WFPV720; Chip Breaker Type: WF; ISO Designation: DNMX150412WF; Included Angle: 55 degrees; Machining Operations: Boring, Copying, External Turning; Insert Grade: PV720; Workpiece Material: Steel; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
