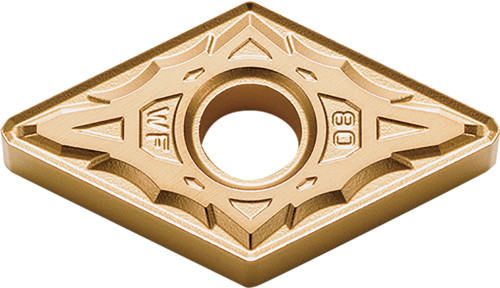

Kyocera Turning Insert DNMX441WF PV720: TLD03995

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD03995
$34.08

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 55 degree diamond shape, negative rake, 4 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD03995.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Fractional)
1/4
Corner Radius (Fractional)
1/64
Included Angle
55
ANSI Designation
DNMX441WFPV720
Insert Style
DNMX
Insert Thickness (Metric)
6.35
Insert Shape
55 Degree Diamond
Insert Holding Method
Screw or Clamp
Insert Size
441
Machining Operations
Boring, Copying, External Turning
Insert Grade
PV720
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
DNMX150604WF
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
WF
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/WE_WF_Chipbreaker.pdf
